Discharge Rod Grounding Clamps
Discharge Rod Grounding Clamps

Discharge Rod Grounding Clamps

Price 2000 INR/ Piece

MOQ : 1 Piece

Discharge Rod Grounding Clamps Specification

  • Surface Finish
  • Galvanized/Anti-corrosive Coating
  • IP Rating
  • IP20
  • Mounting Type
  • Rod Mounted (Threaded/Push Fit)
  • Feature
  • Corrosion Resistant, Rigid construction, Secure Connection
  • Operating Temperature
  • -10C to +55C
  • Shape
  • Rectangular Jaw with Clamp Arm
  • Connector Type
  • Screw-in Clamp-to-conductor
  • Humidity %
  • Up to 95% RH (non-condensing)
  • Efficiency
  • 100% Earthing Contact
  • Insulation Material
  • Epoxy-Resin or Polyester Rod Insulation
  • Product Type
  • Discharge Rod Grounding Clamps
  • Application
  • Electrical Earthing, Discharge and Safety Grounding
  • Protection Level
  • High
  • Frequency (MHz)
  • 50 Hertz (HZ)
  • Rated Voltage
  • Up to 33 kV (varies by application)
  • Output Type
  • Ground/Earth Connection
  • Color
  • Grey
  • Dimension (L*W*H)
  • Varies by Model (Typically L: 150-200 mm, Clamp W: 50-70 mm)
  • Weight
  • Approx. 800-1200 g (varies with model)
  • Warranty
  • 1 Year
  • Phase
  • Suitable for Single and Three Phase Systems
  • Size
  • Clamp Jaw Opening: 25 mm to 45 mm (varies with model)
  • Connection Type
  • Mechanical Clamp Type
  • Material
  • Aluminum Alloy & Copper
  • No Of Poles
  • Single Pole
  • Torque Adjustment
  • Available in Heavy Duty Models
  • Mechanical Strength
  • High-Designed for Outdoor Use
  • Handle Type
  • Insulated Hand Grip
  • Jaw Force
  • High-Spring Loaded Pressure for Reliable Connection
  • Testing Standard
  • Conforms to IS/IEC 61230
  • Conductor Compatibility
  • Copper/Aluminum conductors up to 45 mm diameter
  • Service Life
  • Up to 10 Years (Maintenance Free)
  • Safety Feature
  • Insulated Operating Rod Minimizes Shock Risk


Discharge Rod Grounding Clamps Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Paypal, Cash Advance (CA), Cheque, Telegraphic Transfer (T/T)
  • Supply Ability
  • 1000 Pieces Per Month
  • Delivery Time
  • 30 Days
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India


About Discharge Rod Grounding Clamps



Experience a fresh approach to electrical earthing with our exclusive Discharge Rod Grounding Clamps, designed for valorous performance and radiant reliability. Engineered for conductor compatibility with copper and aluminum up to 45 mm diameter, these clamps ensure a superlative, secure connection with high-spring jaw force. They feature insulated hand grips and robust, corrosion-resistant construction, offering mechanical strength for outdoor installation. With maintenance-free service life up to 10 years, IS/IEC 61230 conformity, and high protection up to 33 kV, grab this advanced solution for uninterrupted safety. Perfect for electrical discharge and grounding applications, it's the premier choice for professionals.

Unmatched Advantages and Diverse Applications

Our Discharge Rod Grounding Clamps deliver competitive strength with insulated operating rods that reduce shock risk and heavy-duty jaw force for steady connections. Boasting anti-corrosive coating, they are ideal for outdoor substations, transmission lines, and power distribution networks. Suitable for single and three-phase systems, their rigid design ensures protection in high-risk environments, making them indispensable for electrical maintenance, industrial facilities, and construction sites where reliable earthing is crucial.


Main Market, Certification Standards, and Secure Shipping

Proudly manufactured and exported from India, our clamps are primarily shipped to the Indian market and neighboring regions. Each unit conforms to IS/IEC 61230 standards, ensuring superlative safety and quality. Every product is carefully packaged and handed over through streamlined logistics channels for optimal protection during transit. Customers receive clamps in robust, labeled boxes, ensuring their arrival in pristine condition-ready for immediate installation and use.


FAQ's of Discharge Rod Grounding Clamps:


Q: How do Discharge Rod Grounding Clamps enhance safety during use?

A: They feature insulated operating rods and hand grips, minimizing the risk of electrical shock. These clamps also conform to IS/IEC 61230 standards, ensuring high safety and reliability for operators in demanding electrical environments.

Q: What types of conductors are compatible with this grounding clamp?

A: The clamps are designed to accommodate both copper and aluminum conductors with diameters up to 45 mm, ensuring flexibility for various wiring and earthing setups.

Q: Where can these grounding clamps be installed for maximum effectiveness?

A: They are suitable for deployment in substations, industrial plants, power distribution networks, and construction sites-essentially any place requiring dependable earthing and discharge solutions.

Q: What is the process for adjusting torque in heavy-duty models?

A: Heavy-duty models come with an adjustable torque feature, allowing users to apply the optimal clamping force for secure, stable connections. This ensures reliable earthing even under rigorous operational demands.

Q: When should these clamps be replaced considering their service life?

A: With a maintenance-free life span of up to 10 years, replacement is typically only necessary after this period, or sooner if there is visible damage or degraded performance due to harsh environmental exposure.

Q: What are the packaging and delivery procedures for these grounding clamps?

A: Each clamp is shipped in sturdy, labeled packaging and carefully handled through efficient logistics channels. This ensures the product reaches customers safely and ready for immediate use.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Electrical Operating & Discharge Rod Category

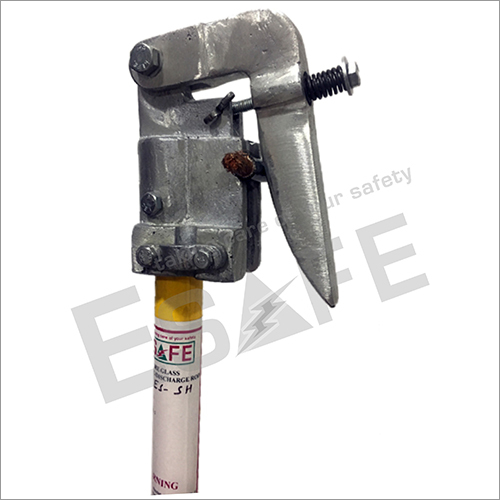

Grounding Clamps For Discharge Rod
