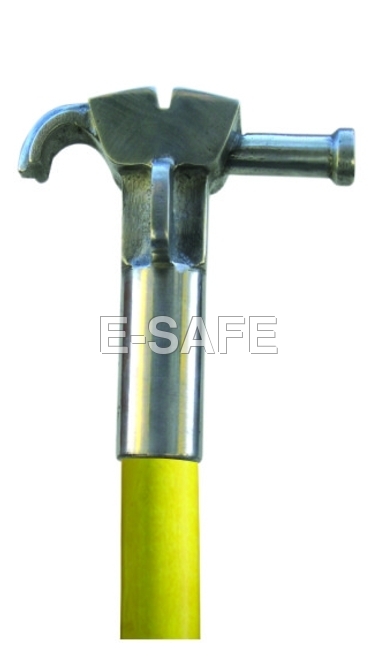

Discharge Cum Operating Rod

Name: Discharge Cum Operating Rod
Brand: E-SAFE ENTERPRISES
Price: 3500.00 INR
Availability: InStock

3500.00 INR/Piece

Get a Price/Quote

Product Details:

Overheating Protection YES
Shape Rod
IP Rating IP65
Mounting Type Handheld
Feature Highly Insulated, Portable, Durable
Insulation Material Epoxy Coated Fiberglass
Surface Finish Smooth, Polished
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Discharge Cum Operating Rod Price And Quantity

Minimum Order Quantity 2 Piece
Price 3500.00 INR/Piece

Discharge Cum Operating Rod Product Specifications

Shape Rod
Weight 2.3 kg Kilograms (kg)
Surface Finish Smooth, Polished
Product Type Discharge Cum Operating Rod
Application Electrical Distribution and Transmission Line Operations
Phase Single Phase
Feature Highly Insulated, Portable, Durable
Overheating Protection YES
Output Type Manual Discharge and Operation
Insulation Material Epoxy Coated Fiberglass
Size Standard/Custom Sizes Available
Mounting Type Handheld
Material High Grade Fiberglass with Epoxy Resin
Rated Voltage Up to 36 kV Volt (V)
No Of Poles Single Pole
Connector Type Screw/Clamp Type
Protection Level High Voltage Protection
Dimension (L*W*H) Length Customizable (Typically 1.2 m to 3.6 m) Foot (ft)
IP Rating IP65
Efficiency High
Color Yellow

Discharge Cum Operating Rod Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T)
Supply Ability 1000 Piece Per Month
Delivery Time 30 Days
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications Yes

Product Description

Our association effectiveness is influential in manufacturing and supplying the excellent quality range of Discharge cum Operating Rod. The offered operating rod is demanded in construction fields as a fastening or supporting equipment. These operating rods are manufactured in harmony with current market standards by utilizing finest quality materials at our well equipped production unit. As per the varied demands of our valuable clients, we are offering this Discharge cum Operating Rod at best market price range.

Features:

Corrosion resistance
Superior strength
Hassle-free installation

Specifications:

High strength
High insulation
Made from pultruded fibre glass tubes
Telescopic multi section poles up to 6mtr
Infinite pole height adjustments
As per IS - 2071 (part 1) 1993, RA 1999 for power Frequency Voltage & lighting impulse voltage with standard test under dry & wet conditions.
Suitable for - 11kv, 33kv, 110kv, 220kv, 400kv.

Model No.: DH

Discharge Rod cum Operating Rod

Minimum Safe Working Distance

Minimum Voltage in KV Phase to Phase	Phase to Ground exposure	Phase to Phase exposure
11 kV	2'4" (0.72m)	2'7" (0.79m)
33 kV	2'7" (0.77m)	2'10" (0.86m)
110 kV	3'2" (0.95m)	4'3" (1.30m)
400 kV	11'3" (3.42m)	18'1" (5.51m)
