Operating Cum Discharge Rod

About Operating Cum Discharge Rod

We are efficiently manufacturing and supplying a wide range of superior quality Operating cum Discharge Rod. The offered discharge rod is designed in accordance with current market standards under the supervision of our experts by utilizing superior quality materials at well equipped production unit. This discharge rod is demanded in automobile, construction and other mechanical industries as a supporting or bridging component. Furthermore, clients can avail these Operating cum Discharge Rod from us at affordable price range.

Features:

• Durable structure
• Precisely designed
• Corrosion resistant

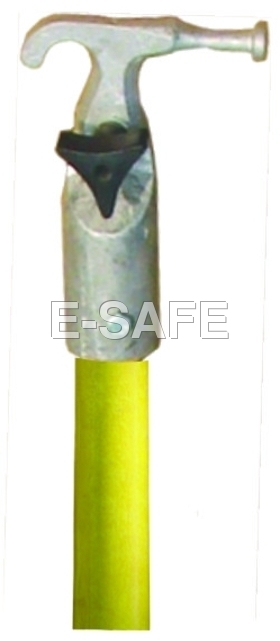

Operating Cum Discharge Rod WITH UNIVERSAL HEAD

• High strength
• High insulation
• Made from pultruded fibre glass tubes
• Telescopic multi section poles up to 6mtr
• Infinite pole height adjustments
• Aluminum casted Operating Cum Discharge Head
• As per IS - 2071 (part 1) 1993, RA 1999 for power Frequency Voltage & lighting impulse voltage with standard test under dry & wet conditions.
• Suitable for - 11kv, 33kv, 110kv, 220kv, 400kv.



Model No.: UH

Operating Cum Discharge Rod
Minimum Safe Working Distance

Minimum Voltage in KV Phase to Phase	Phase to Ground exposure	Phase to Phase exposure
11 kV	2'4" (0.72m)	2'7" (0.79m)
33 kV	2'7" (0.77m)	2'10" (0.86m)
110 kV	3'2" (0.95m)	4'3" (1.30m)
400 kV	11'3" (3.42m)	18'1" (5.51m)

Reliable High-Voltage Safety Solution

Designed for use in complex electrical transmission and distribution systems, this operating and discharge rod provides reliable electrical insulation and discharge capabilities. Its construction from epoxy-coated fiber glass, along with a high-voltage insulation rating, makes it essential for ensuring operator safety during equipment servicing or routine maintenance.


Portable and User-Friendly Design

Weighing just 2.5 kg, the rod is remarkably portable and easy to handle, suited for both field and indoor applications. Its ergonomic design, smooth UV-protected finish, and insulation performance facilitate efficient operation with minimal effort, making it suitable for prolonged usage without fatigue.


Durability and Versatility in One Tool

Featuring a heavy-duty epoxy resin and fiber glass body, the rod resists environmental stresses, UV exposure, and overheating. Its compatibility with copper hooks or clamps and support for single or three-phase systems allows flexible deployment across a variety of substations or field installations.

FAQ's of Operating Cum Discharge Rod:

Q: How is the Operating Cum Discharge Rod used in electrical safety procedures?

A: The rod is employed to safely discharge residual electrical energy from high-voltage equipment and to operate switching devices during maintenance or emergency operations. It provides insulation between the operator and live parts, reducing the risk of electrical shock.

Q: What types of connections can be used with this rod?

A: This rod supports both clamped and coupler connection types and comes equipped with a copper hook or clamp connector, allowing for secure attachment to various electrical components or terminals as required in the field.

Q: When should this discharge rod be utilized during electrical work?

A: Use the rod whenever handling or servicing high-voltage systems up to 33kV, especially before maintenance, inspection, or repair, to ensure all components have been properly discharged and isolated.

Q: Where is this product typically deployed?

A: The rod is ideal for use in substations, transmission lines, and distribution points, as well as during field maintenance of high-voltage electrical installations throughout transmission and distribution networks.

Q: What is the process for performing a discharge operation using the rod?

A: First, verify the rod's integrity and that the copper hook or clamp is securely connected. Then, wearing personal protective equipment, use the rod to touch the high-voltage component, enabling safe discharge of any residual charge. Always follow internal safety protocols.

Q: What are the main benefits of this discharge rod for operators?

A: Operators benefit from its lightweight structure, manual and power-free operation, high insulation efficiency, and durable design, ensuring reliable safety, easy transportation, and extended service life in demanding environments.
