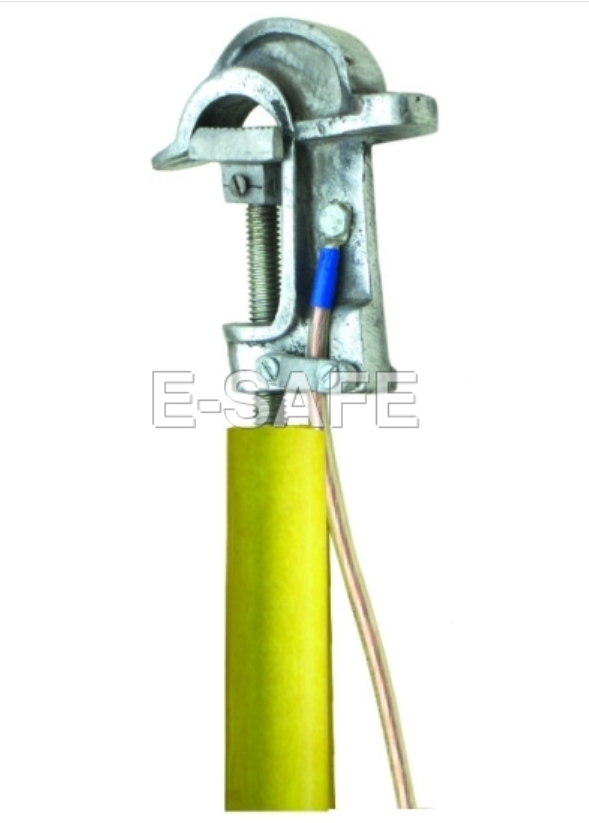

Discharge Rods

Name: Discharge Rods
Brand: E-SAFE ENTERPRISES

Get a Price/Quote

MOQ : 3 Pieces

Discharge Rods Specification

Product Type
Discharge Rods

Application
INDUSTIAL,,, ELECTRICAL

Rated Voltage
33 KV Watt (W)

Warranty
NO

Color
YELLOW

Usage & Applications
INNDUSTIAL AND ELECTRIAL

Weight
4TO5 Kilograms (kg)

Size
2 MEETER

Material
FIBER PLASTIC

Discharge Rods Trade Information

Minimum Order Quantity
3 Pieces

FOB Port
jodhpur

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Sample Available
No

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
Yes

About Discharge Rods

With the help of our mechanically advanced production unit, we are able to manufacture and supply our clients a wide assortment of Discharge Rods. The offered rods are demanded in electrical, automobile, chemical and other mechanical industry for discharging the excessive charge in least amount of time and at uniform surface area. These rods are properly designed and manufactured by utilizing finest quality materials at our well equipped production unit. Further, this Discharge Rods can be easily availed by our customers at economical price range.

Features:

Excellent quality
User friendly
Adorable design

Specifications:

High strength
High insulation
Made from pultruded fibre glass tubes
Telescopic multi section poles up to 6mtr
Infinite pole height adjustments
Aluminum Casted Discharge Head with Locking Mechanism
As per IS - 2071 (part 1) 1993, RA 1999 for power Frequency Voltage & lighting impulse voltage with standard test under dry & wet conditions.
Suitable for - 11kv, 33kv, 110kv, 220kv, 400kv.

Model No.: DR

Minimum Safe Working Distance

Minimum Voltage in KV Phase to Phase	Phase to Ground exposure	Phase to Phase exposure
11 kV	2'4" (0.72m)	2'7" (0.79m)
33 kV	2'7" (0.77m)	2'10" (0.86m)
110 kV	3'2" (0.95m)	4'3" (1.30m)
400 kV	11'3" (3.42m)	18'1" (5.51m)

Technical Details

Reliable High-Voltage Protection

Engineered for environments up to 33 KV, these discharge rods are ideal for safely neutralizing residual electric charges in electrical and industrial settings. Their fiber plastic construction delivers superb insulation, preventing accidental shocks during maintenance or emergencies.

Simple and Efficient Operation

Our 2-meter discharge rods are lightweight, making maneuverability easy even in challenging environments. Yellow coloring increases visibility, while robust FRP material ensures long-term use in heavy-duty applications.

FAQ's of Discharge Rods:

Q: How are discharge rods used in industrial and electrical applications?

A: Discharge rods are used to safely discharge stored electrical energy from high-voltage equipment, preventing accidental shocks during maintenance or in the event of an emergency. Their insulating materials and extended length allow operators to work from a safe distance.

Q: What materials are these discharge rods made of, and why are they suitable for high-voltage use?

A: These rods are constructed from fiber plastic (FRP), which provides excellent electrical insulation and the mechanical strength necessary for handling voltages up to 33 KV safely.

Q: When should a discharge rod be used?

A: A discharge rod should be employed whenever there is a risk of residual voltage in high-voltage systems, typically during shutdowns, maintenance, or after power interruptions to ensure all stored charges are safely released.

Q: Where can these discharge rods be applied?

A: These rods are suitable for use in industrial plants, electrical substations, and various high-voltage environments where equipment requires grounding before hands-on work begins.

Q: What is the process for using a discharge rod safely?

A: To use a discharge rod, operators must wear appropriate protective gear, ensure the rod is in good condition, and connect the rod to a proper earth point. The rod's tip is then carefully brought into contact with parts to be discharged, following all safety protocols.

Q: What are the benefits of using fiber plastic (FRP) discharge rods compared to other materials?

A: FRP discharge rods are lightweight, non-conductive, and highly durable, providing superior safety and longevity compared to traditional materials. Their extended reach and insulation properties make them ideal for high-voltage work.
